ALARM SYSTEM

IDS design and manufacture a range of robust, reliable and cost effective quality alarm panels, keypads, motion detectors and peripheral equipment.  IDS intrusion products offer proven durability and reliability with well over 1 million IDS alarm panels installed in the market today some with over 20 years faultless service.
Through many years of market feedback and research the features of our most popular alarm panel families the IDS805 and X-Series now lead the world in their suited market applications. In the X-Series we offer a fully expandable and customizable solution tailored for effortless expansion as and when the customer requires to a full hybrid wireless solutions.
With our full range of detection, remote control and expansion devices, we offer a complete security solution to suit every requirement from small standalone residential installations through to medium to large fully monitored commercial systems.
  • IDS 805
    The IDS 805 is a versatile, state of the art, microprocessor based, eight-zone Alarm Panel. Most features are optional and may be programmed either directly through the keypad or via the telephone system, using the IDS download software and appropriate modem.

    • Supports up to 4 Keypads
    • 15 Programmable Outputs
    • 15 User Codes, 200 Event Logs
    • Dedicated Tamper Zone
  • IDS X-Series
    The IDS X-Series Alarm Control Panels are the ideal security solution for residential and commercial environments, with a proven reputation for reliability and providing exceptional value in the industry.
  • IDS X16 – 8 Zones expandable to 16 Zones
    • 5 fully programmable outputs
    • hybrid, zone expanders available for both wired & wireless devices
    • 8 zone plug in expander module,zone 9 to 16
    • 16 detector wireless receiver, zone 1 to 16
    • 128 user codes, 1000 event log
  • IDS X16 – 8 Zones expandable to 16 Zones
    • 8 partitions ,supports up to 8 keypads
    • 5 fully programmable outputs expandable up to 25 outputs
    • hybrid, zone expanders available for both wired & wireless devices
    • 8 zone plug in expander module, zones 9 to 16
    • 16 detector wireless receiver, max 4 per system
    • 128 user codes, 1000 event log
  • IDS 8 Zone LED Classic Series Keypad
    • 8 Zone classic series LED keypad
    • 3x dedicated emergency keys
    • 3 quick arm mode keys
    • Keypad LED output
    • Panic input
    • User friendly
  • IDS X-Series Multi-language LCD Curve Series Keypad
    Now available in the following languages:
    English, Afrikaans, Spanish, Portuguese, Italian, Greek

    • 2 x 16 Character blue LCD display
    • 3 x dedicated emergency keys
    • 3 quick arm mode keys
    • Programmable keypad output
    • EOL monitored zone input

INDOOR DETECTORS

  • IDS Lifeguard II PIR with Red LED (Wired)
    • Range: 12 x 12 meters
    • Adjustable 6 or 12 meter range selection
    • Viewing angle: 108 degrees
    • Selectable 1/4 Pulse Count
    • Automatic Temperature Compensation
    • Operating Voltage: 8 to 18VDC
  • IDS Ceiling Mount 360 PIR Detector (Wired)
    • Range: 12 meters
    • Viewing angle: 360 degrees
    • Omni Directional Dual Element Pyro
    • Mounting height: 2.4 to 4.2 meters high
  • Dual Pyro PIR (Wired)
    • Dual sensors and software to ignore small pets under 36kgs
    • Range: 12 meters
    • Automatic Temperature Compensation
    • Alarm LED On or Off optional
    • Sealed Chamber protects the optical system
    • Anti-tamper Switch, Anti-white Light 10,000 LUX
  • Photoelectric Smoke Detectors (Wired)
    • 4 wire Smoke Detector Relay Output
    • Compatible with all security alarm system
    • Two flashing LED’s provide 360 degrees visibility
    • Wide range of operating voltage 9-28vdc
    • Insect-resistant Screening
  • Magnetic Switches
    • Magnetic Door Contacts
    • Tester Holes on Reed Switches
    • Available in White or Brown
    • UL Approved
  • Seismic Detector
    • 3 Meter Range with Sensitivity Adjustments
    • 15 mA minimum sound pressure level
    •  Dual tamper alarm for cover and base plate
    • Operating Voltage: 9-15 VDC
    • Alarm Output: 28 VDC, 500 mA
    •  Low Voltage Alarm: Voltage drops below 7.5 V
  • X-Wave Wireless Door Contact
    • Built-in reed switches with magnet
    • LED On /Off Option
    • Fully Supervised
    • Elegant Design
    • Available in white and brown

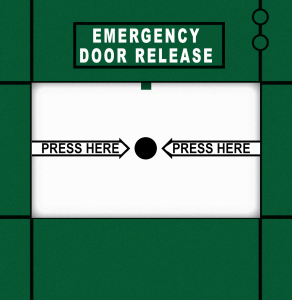

  • Manual Call Point
    • Double Poll
    • Operating Voltage: 30 VDC
    • Operating Current: 2A
    • Operating Status: NO NC





OUTDOOR DETECTORS

  • IDS PIR Pet Friendly Detector
    • Pet Immune, 12 x 12 Meter Range
    • Viewing Angle: 110 degrees
    • Waterproof and UV Resistant
    • Temperature Compensation
    • Triple Technology Motion Detector using Microwave, Passive Infrared
    • Artificial Intelligence Technology
  • IR Beam Barriers
    • 30 meter Outdoor
    • 60 meter indoor range
    • Beam Height – 210 cm
    • Beam Height – 117 cm
  • HYYP IP-Connect
    • TCP/IP
    • DHCP Ethernet Required
    • Remote IDSwift Panel Programming for IDS X-Series Control Panel
    • App available on Android and IOS *(Phone not included)
  • IDS X-SMS Module
    • Controls the X-Series via any cellphone handset
    • Simple SMS Commands with confirmation replies
    • 3 levels of user authority: (1) Master / (2) User / (3) Reporting
    • Arm/Disarm with Partition Control
    • Customize Labels (Zone, Site, Partition)
    • Query Airtime and Manage SMS
    • Multiple free web apps to download

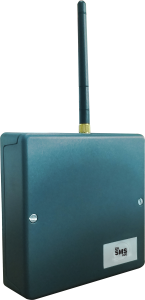

  • IDS SMS Duo Module
    • Controls the IDS 805 via any cellphone handset
    • 3 levels of user authority: (1) Master / (2) User / (3) reporting
    • Arm/Disarm Control
    • Trigger Outputs (2 outputs on the SMS Duo)
    • Customize Labels (Zone, Site)
    • Query Airtime and Manage SMS
    • Multiple free web apps to download

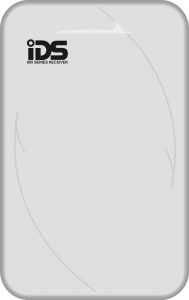

  • IDS 805 Series Bus Receiver
    • Remote Arm/Disarm Function
    • Standalone Receiver up to 15 Users, 2 Relay Outputs with 1A Contacts
    • Communicates with the Alarm Panel via Keypad Bus
    • Relay 1, Relay 2, or No Action
    • Each receiver has two outputs ideal for the Gate/Garage or Light Control
  • IDS X-Series Bus Remote Receiver
    • Up to 128 Users
    • Programmable from the Keypad, 2 Relay Outputs with 1A contacts
    • Communicates with the Alarm Panel via Keypad Bus
    • Secure Code Hopping Functionality
    • Remote buttons can be programmed to Arm/Disarm; Stay Arm, Panic, Relay 1, Relay 2, or No Action
    • 3 second any button Panic Room Option
  • IDS X-Series  8 Zone Plug In Expander Module
    • 8 Wired, End-of-line Supervised Zone Inputs
    • Small footprint: plugs directly into the Control Panel
    • Simple Expansion to 16 zones
  • IDS X64, 8 Zone Wired Bus Expander Module
    • 8 Zone Bus Expansion Module max(6 per system)
    • 8 Wired, End-of-line Supervised Zone Inputs
    • Optional Tamper per zone using Double End-of-line Resistors
    • 2 Onboard Programmbale Outputs for X64 only
  • IDS X-Series Wireless Zone Expander
    • Approximate range of 100m line of sight between detectors and receiver
    • Receivers can be installed anywhere on the bus to optimize installation effectiveness
    • All programming done from the X-Series Keypad, 2 onboard outputs
    • Xwave Transmitters are factory fitted into the complete range of  detectors
  • IDS X-Wave 2 Bi-Directional Wireless HUB
    • X16-1 Hub, 16 Bi-Directional Detectors
    • X64-4 Hub, 16 Bi-Directional Detectors
    • Improved Supervision with continuous poling between the HUB and Detectors
    • Intelligent Bi-directional Remote with System Status Home Automation Control
    • All programming is done via the X-Series Keypad or IDSwift2 Wireless with the reliability of wired
  • IDS X-Wave 2 Input/Output Module
    • Small slimline design with excellent range
    • Includes two zone inputs and one 10A relay output
    • Two zone inputs with supervision
    • Fully Supervised
  • IDS X-Series 8 Channel Output Expander
    • Wired on the Key Bus
    • Up to 2 Modules per installation
    • Additional outputs for Power/Battery/Fuse Failure Monitoring
    • Flexible output programmable options
    • Programmable Zone follower outputs when Armed or Disarm
    • Partition Armed and Alarm
  • IDS X-Series 8 Channel Receiver
    • 3 trouble outputs for supervision of low battery, zone tamper, and supervision
    • Easy Detector Enrollment
    • Approximate range of 100m line of sight between detectors and receiver
    • Ideal and convenient for adding  Xwave detectors to any new
  • IDS X-Wave 2 Bi-Directional 5-Button Remote
    • Function Button for Checking System Status
    • Tri-color LED Indicator Light confirms Button
    • Arm/Disarm, Single or Multiple Partitions
    • Stay Arming with ability to change Stay Profiles
    • Panic, Duress, Medical Emergencies
  • IDS Remote Transmitter
    • Approximate range 100 meters line of site
    • Can be used with IDS Alarm Panels for Remote Arming/Disarming, or other Alarm Systems through a reply an on Arm/Disarm Zone
    • Hand-held Key-ring Remote Transmitter
  • IDS 2 Button Transmitter
    • Can be used with IDS Alarm Panels for Remote Arming / Disarming, or other Alarm Systems through a reply an on Arm/Disarm Zone
    • Modern, practical, and robust design
    • Hand-held Key-ring Remote Transmitter
  • 3 Amp Power Pack
    • 12VDC 3A with battery back-up connection
    • Includes an adjustable output timer 0’15 sec.
    • Able to charge a 12VDC/ 7A (not included)
    • Dimension: L220 x W177 x H83mm
